Model | TIG-250PC Argon arc welding/cold welding/manual arc welding/pulse welding/cleaning | |
Input Voltage(V) | 1*220V-240V+1*110-120V | |
Frequency (Hz) | 50HZ/60HZ | |
Power Capacity (KVA) | 7.1 | |
Max Input Current (A) | 38 | |
No-load Voltage(V) | 62V | |
Rated working cycle（%） | 60 | |
TIG/MMA Current range(A) | 10~220/10~220 /20~220/ 20~180/10~40 | |
MMA Range of thrust current（%） | 0-100 | |
MMA Hot start range（%） | 0-100 | |
TIG/DC/PULSE | Pre air time S | 0.1-15 |
Start an arc % | 10-100 | |
Rise time S | 0-15 | |
Welding current A | 10-250 | |
Descent time S | 0-15 | |
Stop the arc % | 10-100 | |
Aftergas time | 0.1-15 | |
Base value % | 10-100 | |
Pulse frequency HZ | 0.2-200 | |
Duty cycle | 10-90 | |
TIG-COLD | Pre air time S | 0.1-15 |
Welding current A | 10-220 | |
Welding time MS | 1-999 | |
Interval time S | 0-10 | |
Aftergas time | 0-15 | |
MMA | Electrode diameter （mm） | 1.6, 2.0, 2.5, 3.2, 4.0 |
Offset current (A) | ±5A | |
CLEAN | Cleaning current A | 10-40 |
TIG Tungsten diameter （mm） | 1.0, 1.6, 2.0, 2.4, 3.2 | |
Efficiency（%） | 85 | |
Power factor | 0.93 | |
Protection level (S) | IP23 | |
Insulation level | F | |
Size（mm） | 380*160*240 | |
Weight（KG） | 7.4 | |
1: Minimum order quantity: 100 units 2: Price $161

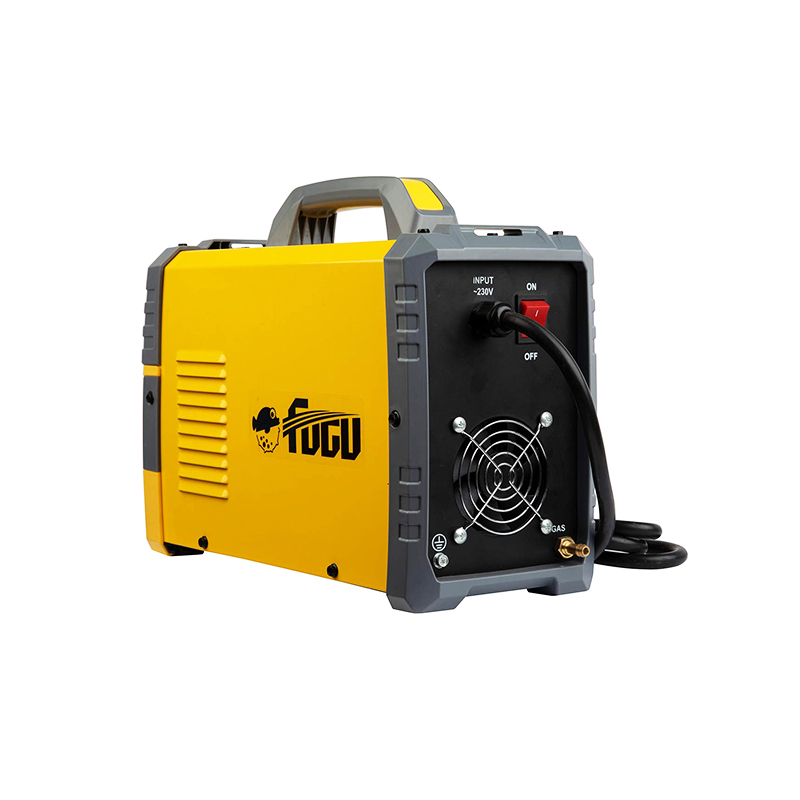

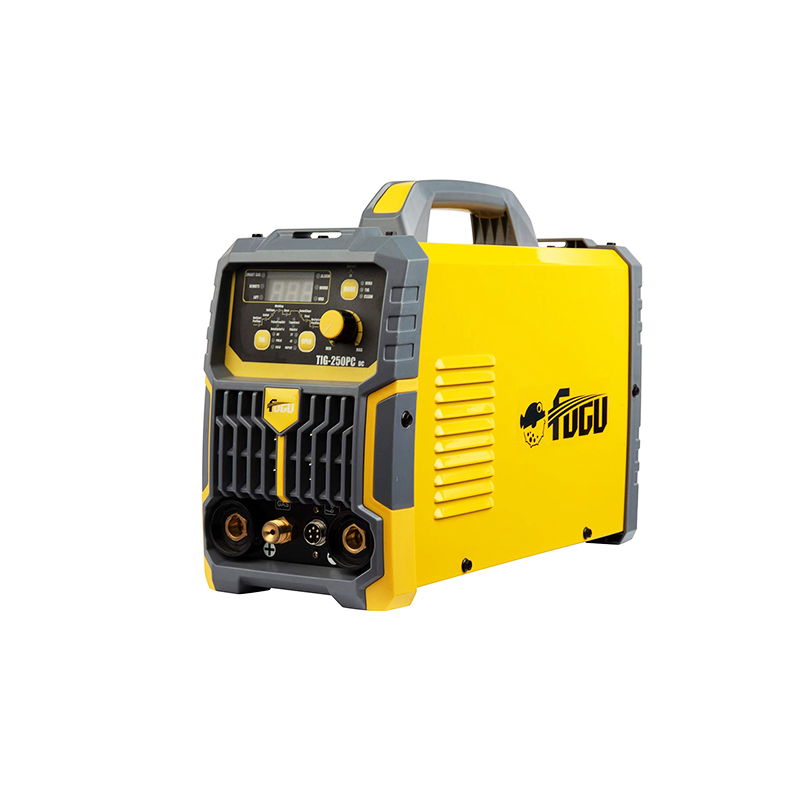

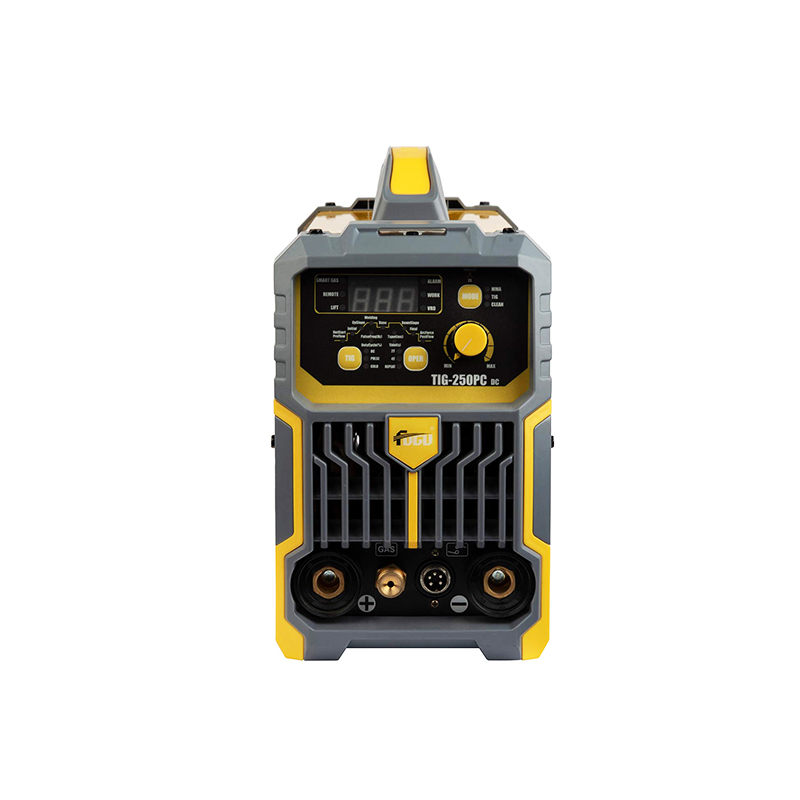

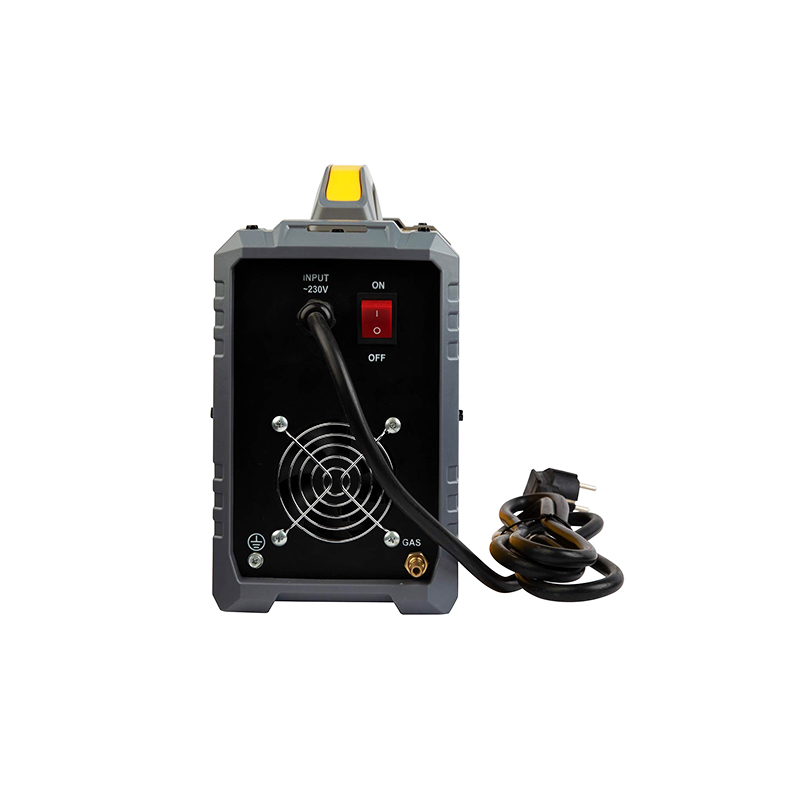

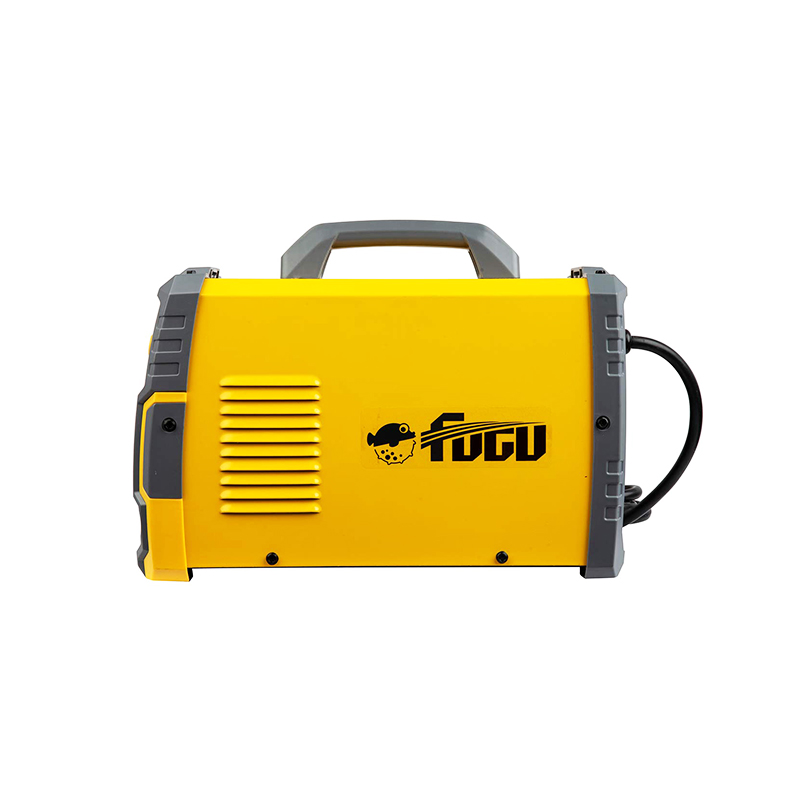

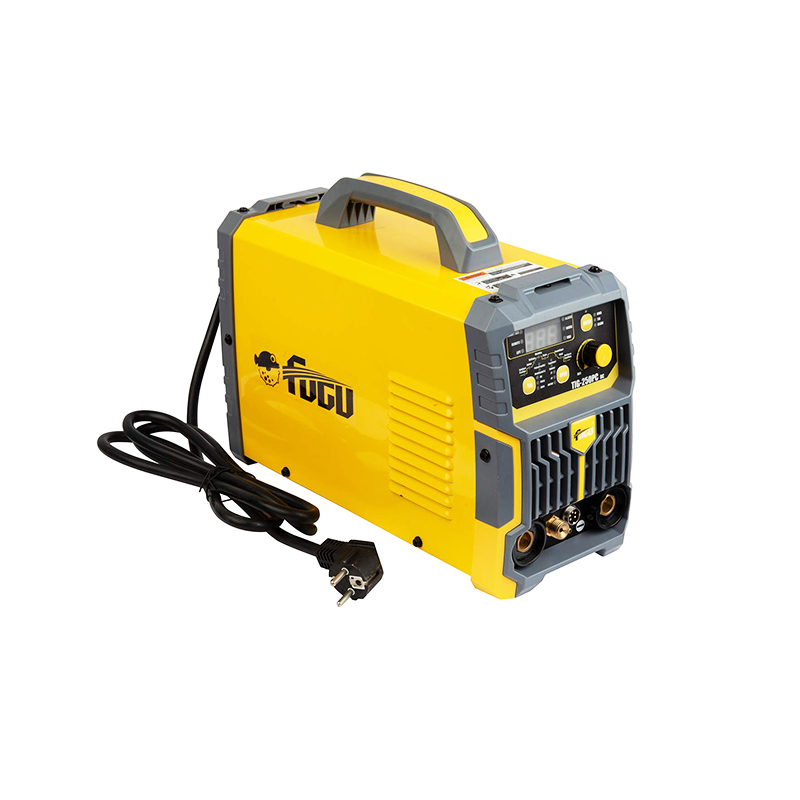

The TIG-250PC welding machine is an IGBT inverter welding machine. It is a type of inverter arc welding power source specifically designed for TIG DC welding using high-frequency or LIFT impact. The minimum welding time is 1 millisecond, and the maximum interval time is 10 seconds. By adjusting the welding time separately, different welding requirements can be achieved. The instantaneous impact current can reach 220 amperes, and the minimum welding capacity is 0.1mm plate. The manual arc can weld (acidic, alkaline) welding rods.
This inverter welding machine has the characteristics of high speed and precise adjustment, which can achieve excellent welding quality. In the pulse output mode of argon arc welding, TIG PULSE is generally used for welding alloys other than aluminum and magnesium. The current is alternately output, and the frequency duty cycle can be adjusted according to actual needs to minimize tungsten electrode loss.
The arc concentration is good, the heat output is small, the melting depth is deep, and a neat corrugated weld can be formed.
Cold welding output mode can be used for welding alloy metals such as gold, silver, and copper.
Accurately control the energy output during the welding process, so that there is not too much energy acting on the workpiece, and adjust the welding time and interval separately.
CLEAN is used to clean the weld seam of stainless steel metal, making the welded workpiece more beautiful and aesthetically pleasing.
Cleaning Effect
Company Profile
Taizhou Fugu Welding Equipment Co., Ltd. is a professional welding machine manufacturer. We focus on developing and producing high-quality welding machines, welding equipment, and cutting equipment tools to meet the diverse needs of our customers. The core goal of Fugu welding is to tailor various products to overseas customers with innovation, competitive prices, and good display.
Fugu Welding Equipment Company provides overseas buyers with various reliable and cost-effective inverter welding machines, such as MMA/ARC welding machines, TIG welding machines, CCC certified MIG welding machines, and CE certificates. Our ISO9001 certified production facilities provide consistent quality, so you can use them with confidence. Our specific application engineers and dedicated R&D teams are able to customize solutions to achieve optimal performance and value.
Our Employees
We are culturally diverse, but we have gained globally. We welding engineers and semiconductor engineers meet and exceed customer expectations with professional knowledge and industry centered design concepts.
Our Culture
Our philosophy of "trying everything is impossible" and "yes, why not" defines Fugu Welding as providing high-quality welding problem solutions for global buyers. The customer-centric spirit enables us to easily collaborate with you.
Fugu Company can bring you a professional, helpful, and productive welding equipment business experience. Cooperating with Fugu Company, we will exceed your expectations!
Our Factory
Our Team
Certificate
Why Choose Us？
We are China Leading manufacturer. We areconfident that with our experience in Circuitbreaker, Transformer, Relay, Substation, Stablizeretc. Quick delivery time, excellent quality andcomprehensive superior service we can giveour customers complete satisfaction.
100% QC inspection before shipping.
For large order, engineer can be sent to yourcountry for on-site mainternace instructions.
OEM is available.
