Model | TIG-250A Argon arc welding/DC welding machine | |
Input Voltage(V) | 1*220V-240V+1*110-120V | |
Frequency (Hz) | 50HZ/60HZ | |
Power Capacity (KVA) | 7.1 | |
Max Input Current (A) | 38 | |
No-load Voltage(V) | 62V | |
Rated working cycle（%） | 60 | |
TIG/MMA Current range(A) | 10~220 / 20~180 | |
MMA Range of thrust current（%） | 0-100 | |
TIG/DC | Welding current A | 10-220 |
Fall timeS | 0-15 | |
Aftergas time | 0-15 | |
MMA | Electrode diameter （mm） | 1.6, 2.0, 2.5, 3.2, 4.0 |
Offset current (A) | ±5A | |
TIG Tungsten diameter （mm） | 1.0, 1.6, 2.0, 2.4, 3.2 | |
Efficiency（%） | 85 | |
Power factor | 0.93 | |
Protection level (S) | IP23 | |
Insulation level | F | |
Size（mm） | 380*160*240 | |
Weight（KG） | 6.9 | |
1: Minimum order quantity: 100 units 2: Price $75

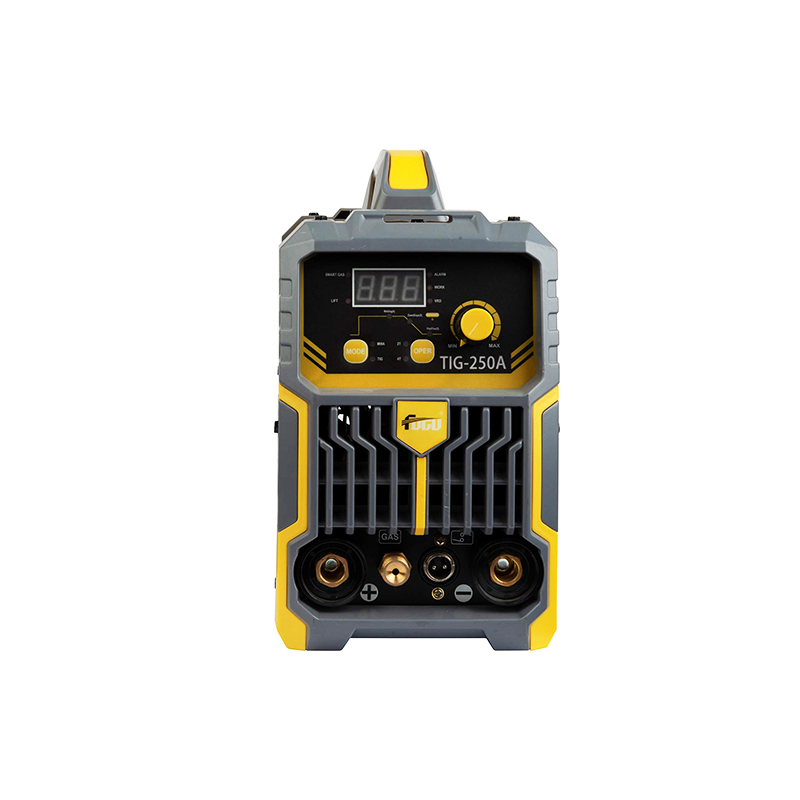

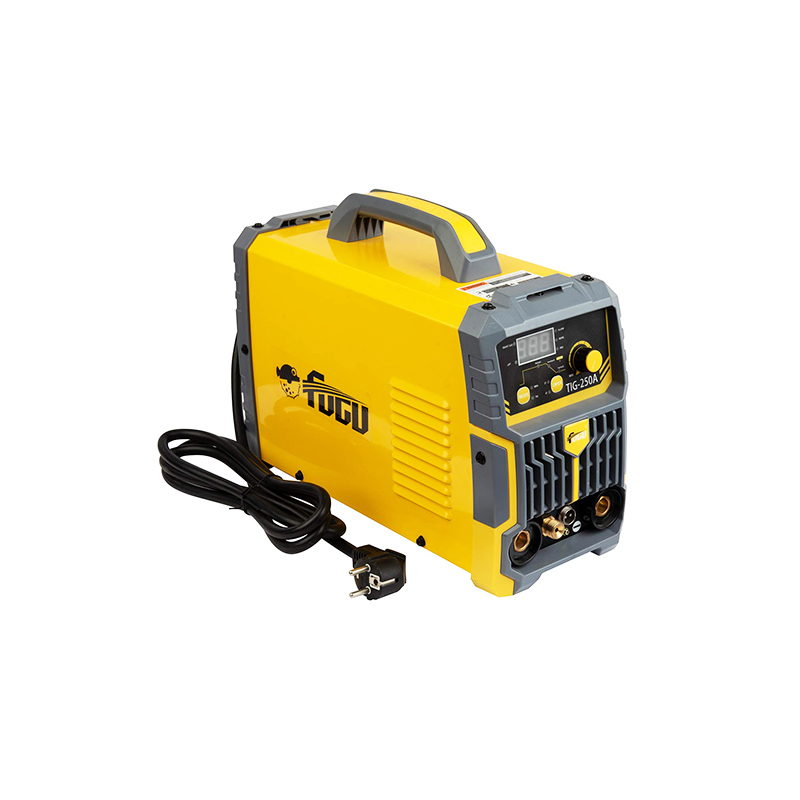

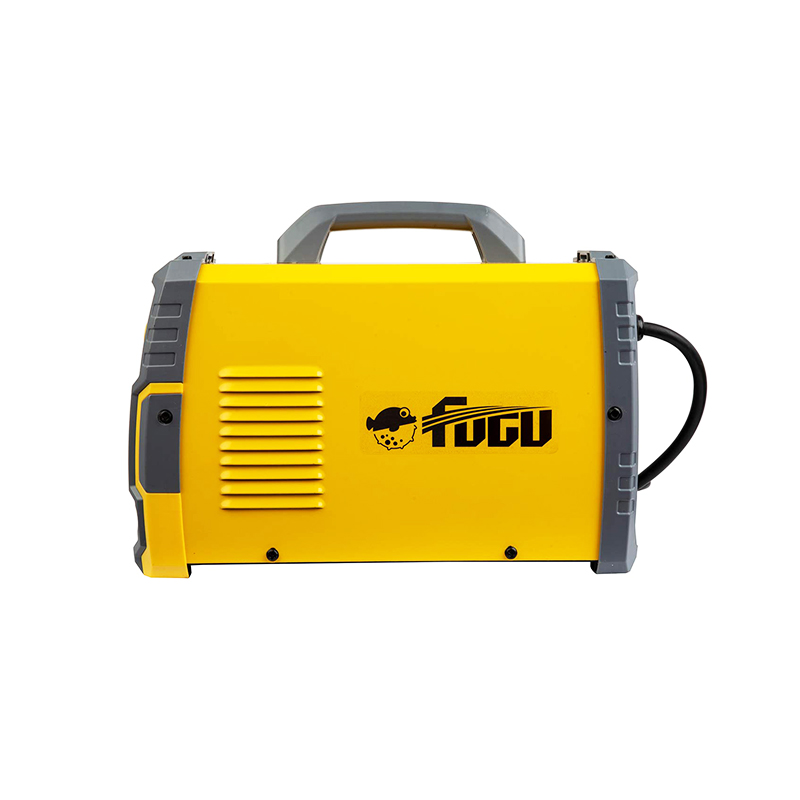

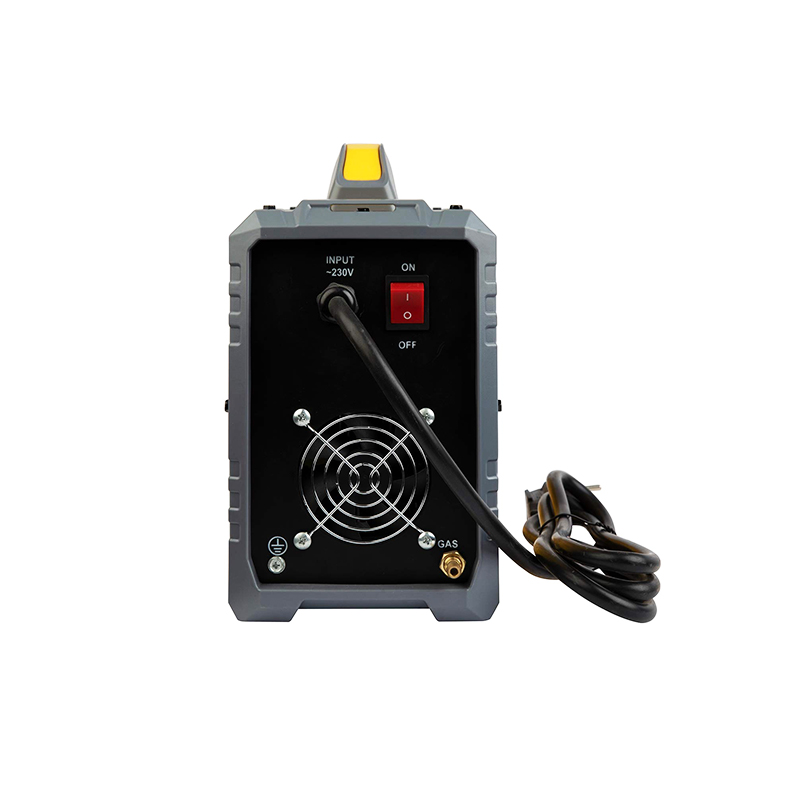

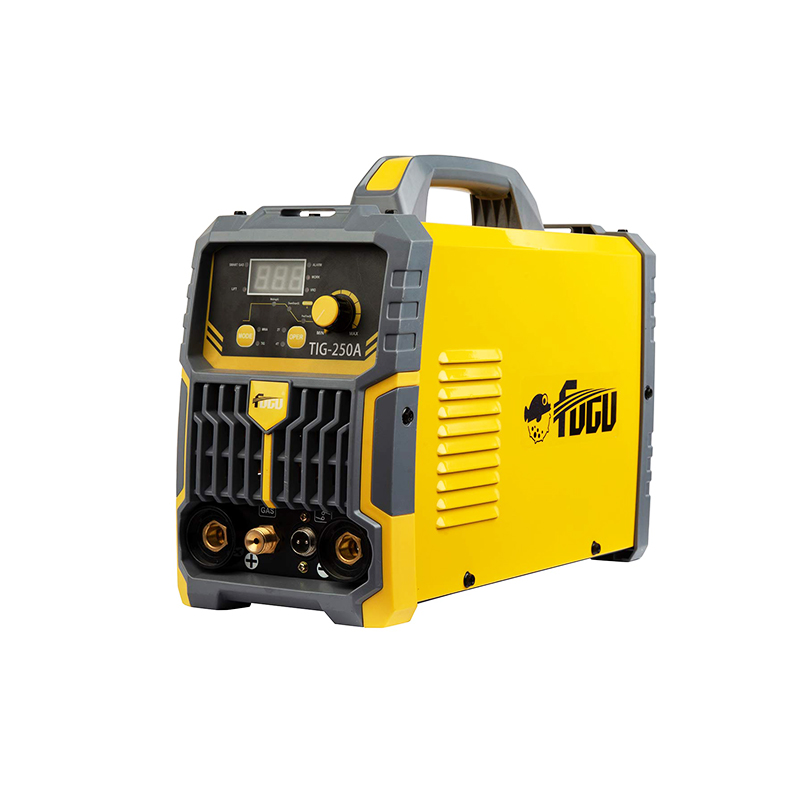

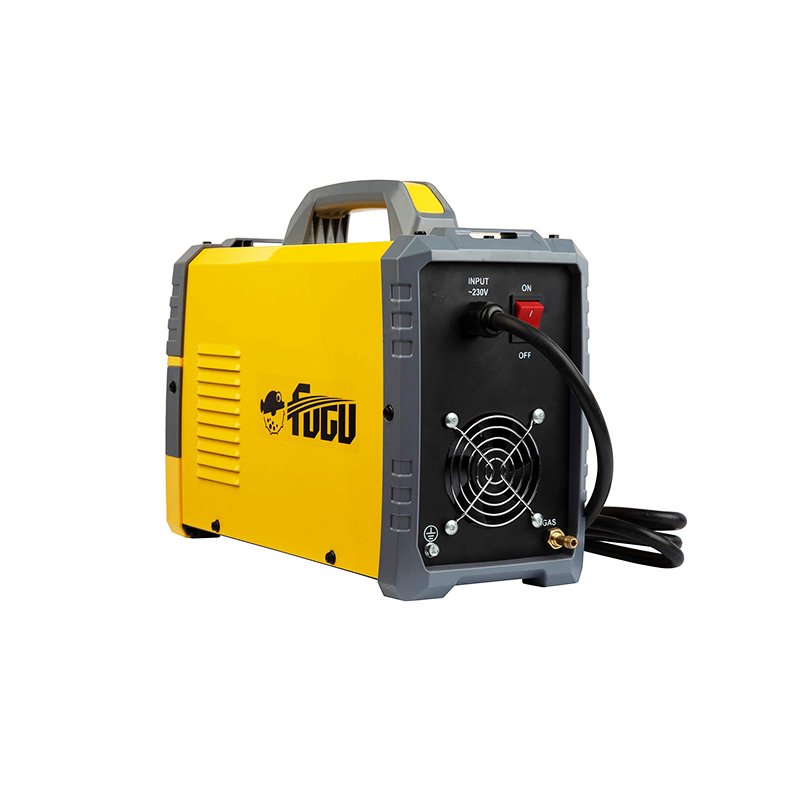

TIG-250A argon arc welding machine is an IGBT inverter welding machine. This welding machine is a type of inverter arc welding power source, specifically designed for TIG DC welding using high-frequency boosting arc ignition technology. It is equipped with an intelligent gas saving program to minimize gas waste in daily use. The maximum welding current can reach 220 amperes, the minimum welding capacity is 0.1mm plate, and the welding rod can be manually arc welded (acidic, alkaline). This inverter welding machine has the characteristics of high speed and precise adjustment, which can achieve excellent welding quality.
