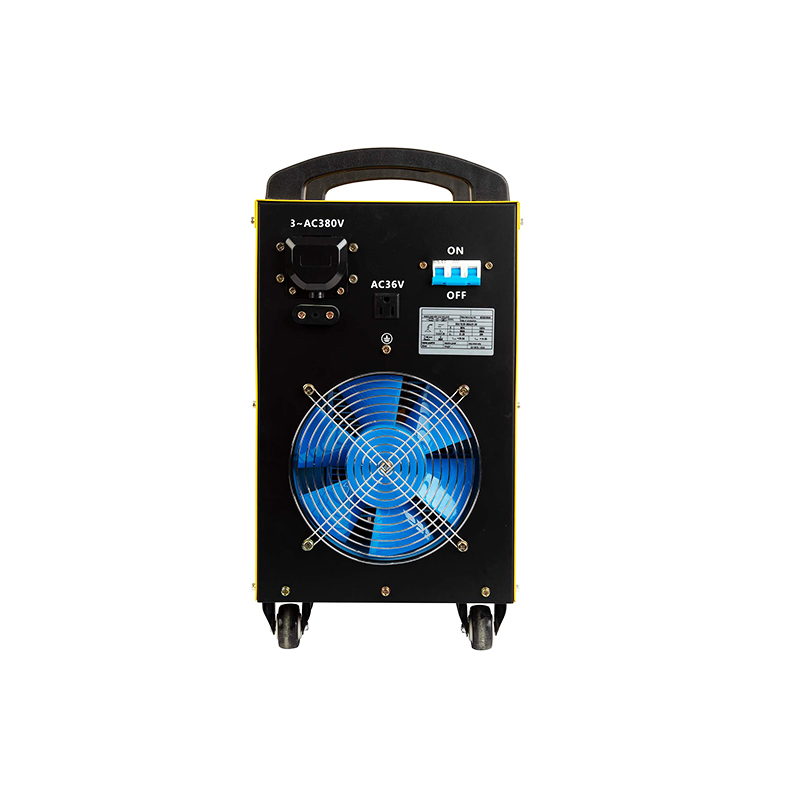

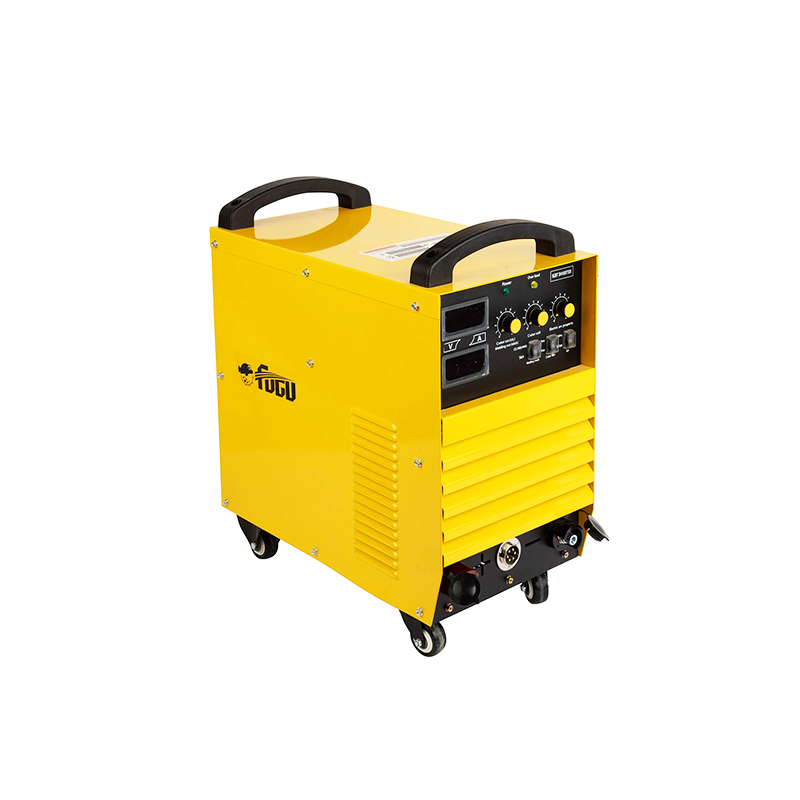

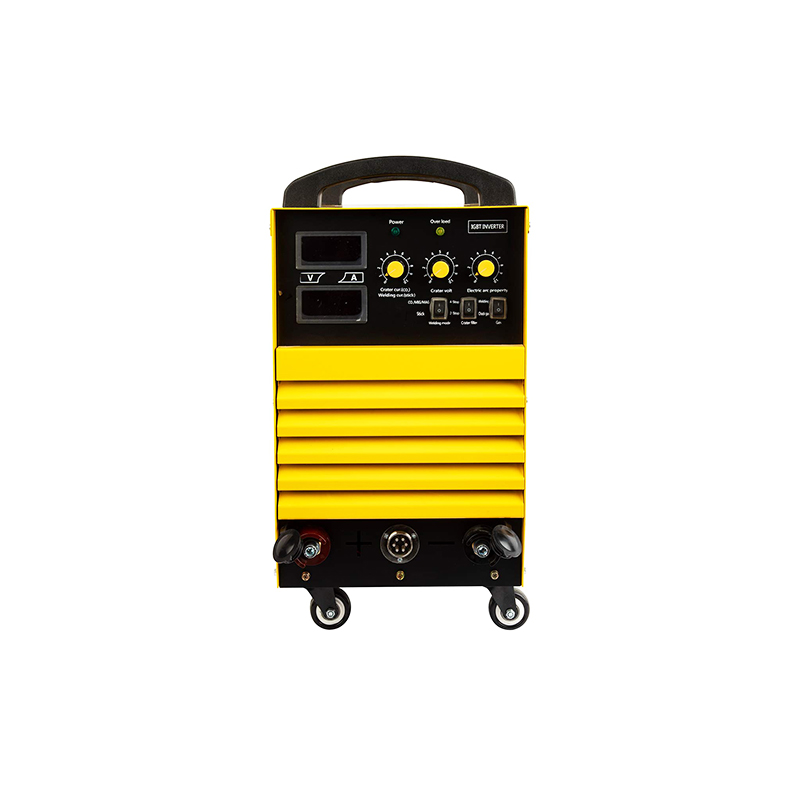

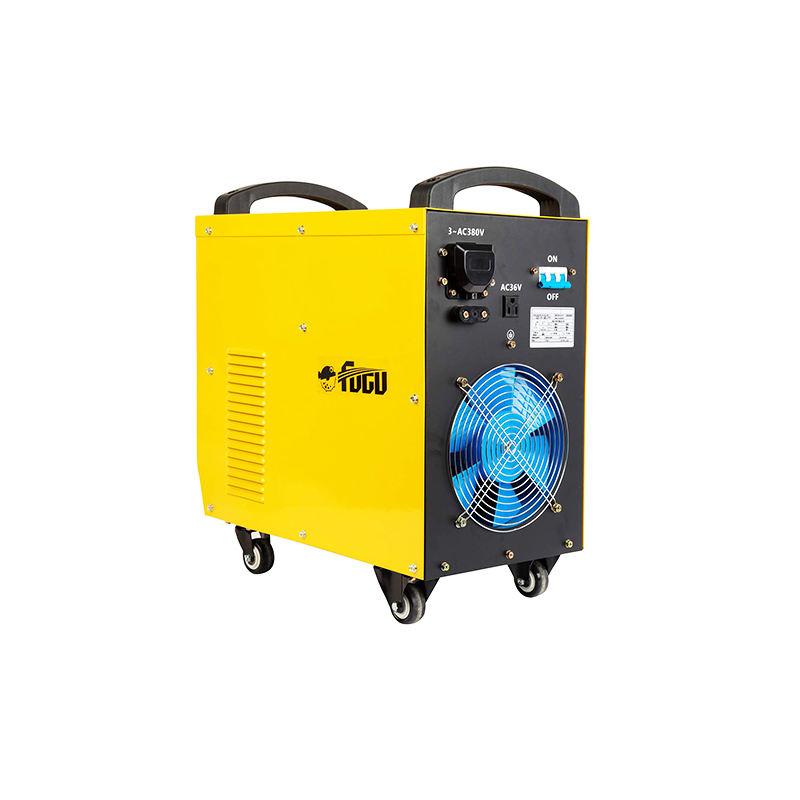

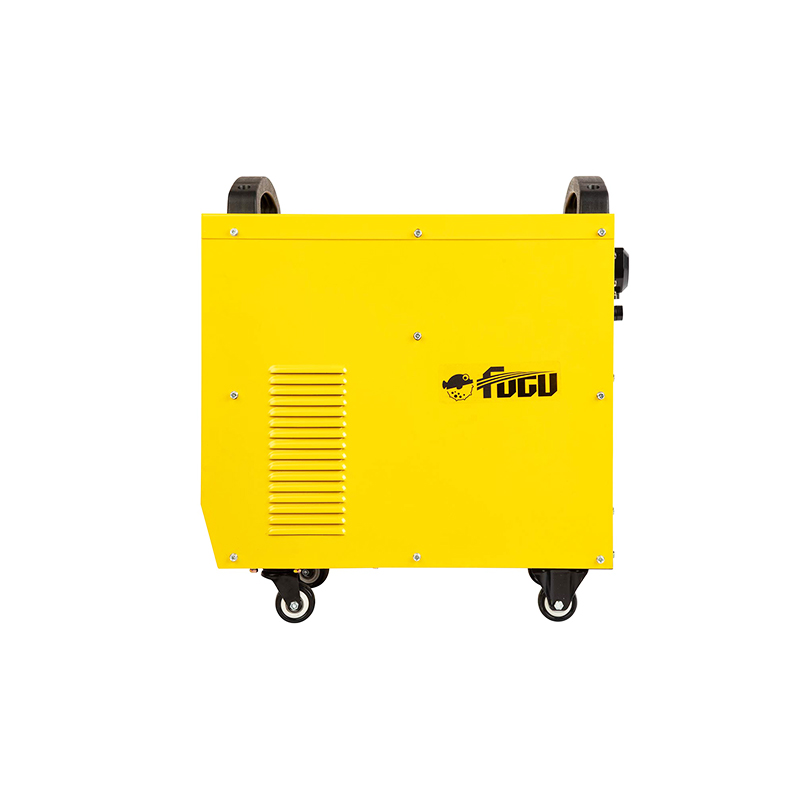

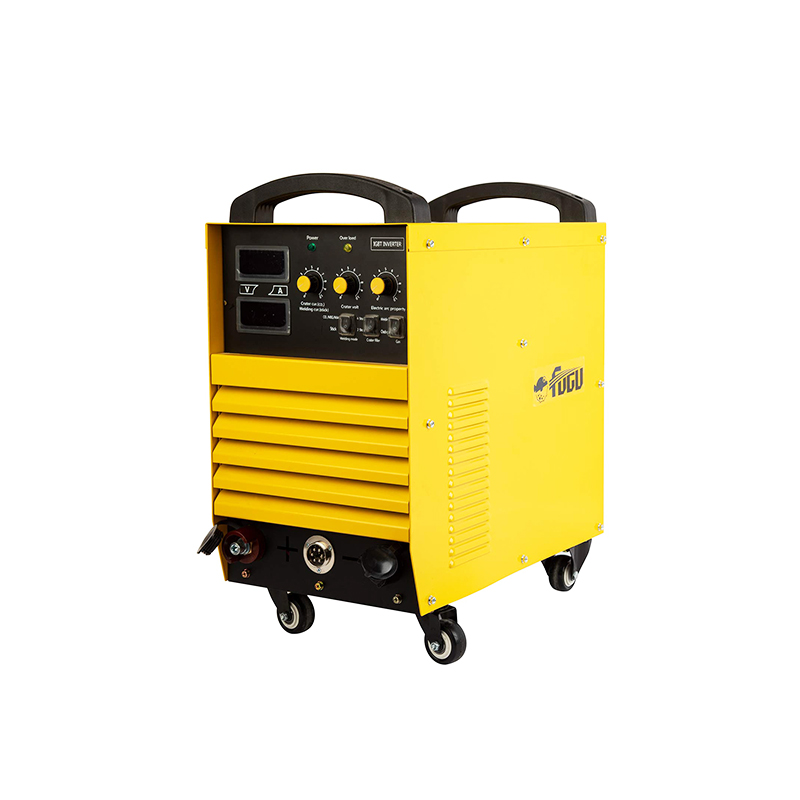

MIG-500 3 in 1 Welder Equipments Industry Pulse Welding Machine with IGBT Inverter Technology
Customization | Available |
Cooling Way | Air Cooling |
Style | Portable |
The advanced IGBT inverter technology reduces the size and weight of the welding machine. The main circuit adopts IGBT with strong impact resistance as the power device, which has a smaller size, higher reliability, and significant energy-saving effect.
By adopting new control technology, the voltage spikes generated by the secondary inverter are reduced, resulting in improved reliability, lower energy consumption, and smaller size. This welding machine adopts internationally leading MCU intelligent digital technology for control, and the core functions of the welding machine are implemented by software. It is a digitally controlled welding machine, which has greatly improved both function and performance compared to traditional welding machines.
Can be widely used in the welding of various acid and alkaline welding rods.
It has the characteristics of easy arc ignition, low splashing, stable current, and good molding.
The front and rear panels are made of high-strength engineering plastics, effectively ensuring efficient operation of the machine under harsh conditions such as high impact and drop.
Excellent insulation performance.
Good "three protection" design, anti-static, and corrosion resistance.
Product Advantages
Complete automatic protection function
This machine has a complete automatic protection function. When the on-site power grid voltage fluctuates significantly, the welding machine will automatically stop working and display fault information. After the power grid voltage stabilizes, it will automatically resume working. When the welding machine experiences faults such as overcurrent and overheating, it will also pause the operation of the welding machine and display fault information. Multiple comprehensive protection functions will greatly improve the service life of the welding machine.
Good product consistency and stable performance
This machine adopts intelligent digital control, which is characterized by insensitivity to changes in component parameters. Changes in certain component parameters will not affect the performance of the welding machine. Not sensitive to changes in environmental temperature and humidity. So the consistency and stability of digital control welding machines are much better than traditional welding machines.
Easy to adjust parameters and upgrade software
Generally, for welding machines controlled by analog circuits or mixed control of analog and digital circuits, to achieve various welding functions and adjust various welding parameters, most of them rely on corresponding circuits. If there are many parameters to be adjusted, the circuit will be very complex and difficult to implement. The intelligent digital control welding machine is mainly completed by software, so it is easy to achieve various functions of welding and adjust welding parameters, and the adjustment accuracy is very high. Upgrading and renovating welding machines does not require changing the circuit, only downloading the upgrade software is required.
Friendly human-computer interaction interface
This machine adopts the internationally recognized graphical language interface as the human-computer interaction main interface, with a simple, intuitive, and easy to understand operation panel layout that facilitates the correct operation of various types of users.
Can achieve high-quality manual welding
The use of excellent control algorithms significantly improves the manual welding performance: easier arc ignition, stable welding current, minimal spatter, non stick strip, good weld formation, and the ability to automatically adapt to changes in the length or cross-section of the welding cable. It has excellent quality under size specifications.
Capable of achieving high requirements for argon arc welding
The improved digital constant current regulation technology ensures low noise and high stability of arc quality within the entire specification. At the same time, the sophisticated and mature control algorithm provides a convenient and practical method for users to freely control the current form. This machine provides three argon arc operation modes, including classic 2-step, 4-step, and spot welding, providing a good way for users to achieve special process requirements.
Support remote control
This machine also provides an analog remote control method, which is a foot switch remote control, allowing users to adjust the argon arc current in real time from a distance of more than ten meters.
Model | MIG-500 shielded welding/manual arc welding | |
Input voltage (V) | 3*380V/3*440V | |
Frequency (Hz) | 50HZ/60HZ | |
Power capacity (KVA) | 6.5 | |
Maximum input current (A) | 38 | |
No load voltage (V) | 56V | |
Rated working cycle (%) | 60 | |
MMA current range (A) | 50~500/ 20~500 | |
MMA thrust current range (%) | 0-100 | |
MMA hot start range (%) | 0-100 | |
MIG | Pre air time S | 0.1-15 |
Welding current A | 10-500 | |
Descent time S | 0-15 | |
Spot welding time S | 0.01-5 | |
Post gas time | 1-15 | |
MMA | Electrode diameter (mm) | 1.6, 2.0, 2.5, 3.2, 4.0,5.0,6.0 |
Offset current (A) | ±5A | |
MIG welding wire (mm) | 1.0, 1.2, 1.6 | |
Efficiency (%) | 85 | |
power factor | 0.93 | |
Protection level (S) | IP23 | |
Insulation level | F | |
Size (mm) | 580*350*550 | |
Weight (kg) | 30 | |
Cleaning Effect

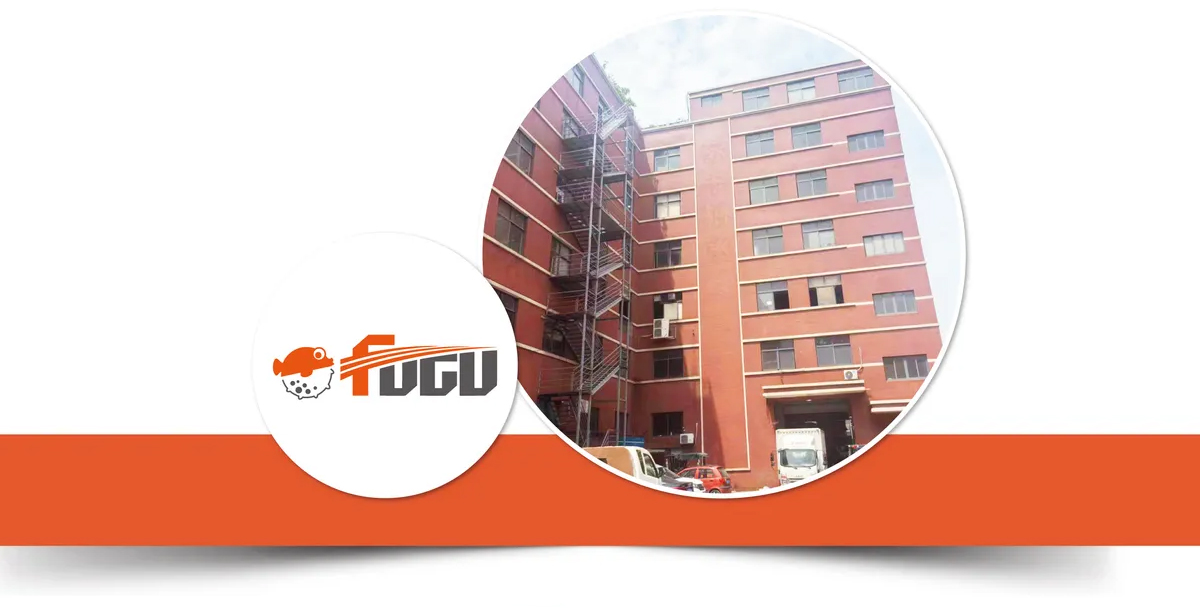

Company Profile
Taizhou Fugu Welding Equipment Co., Ltd. is a professional welding machine manufacturer. We focus on developing and producing high-quality welding machines, welding equipment, and cutting equipment tools to meet the diverse needs of our customers. The core goal of Fugu welding is to tailor various products to overseas customers with innovation, competitive prices, and good display.
Fugu Welding Equipment Company provides overseas buyers with various reliable and cost-effective inverter welding machines, such as MMA/ARC welding machines, TIG welding machines, CCC certified MIG welding machines, and CE certificates. Our ISO9001 certified production facilities provide consistent quality, so you can use them with confidence. Our specific application engineers and dedicated R&D teams are able to customize solutions to achieve optimal performance and value.
Our Employees
We are culturally diverse, but we have gained globally. We welding engineers and semiconductor engineers meet and exceed customer expectations with professional knowledge and industry centered design concepts.
Our Culture
Our philosophy of "trying everything is impossible" and "yes, why not" defines Fugu Welding as providing high-quality welding problem solutions for global buyers. The customer-centric spirit enables us to easily collaborate with you.
Fugu Company can bring you a professional, helpful, and productive welding equipment business experience. Cooperating with Fugu Company, we will exceed your expectations!

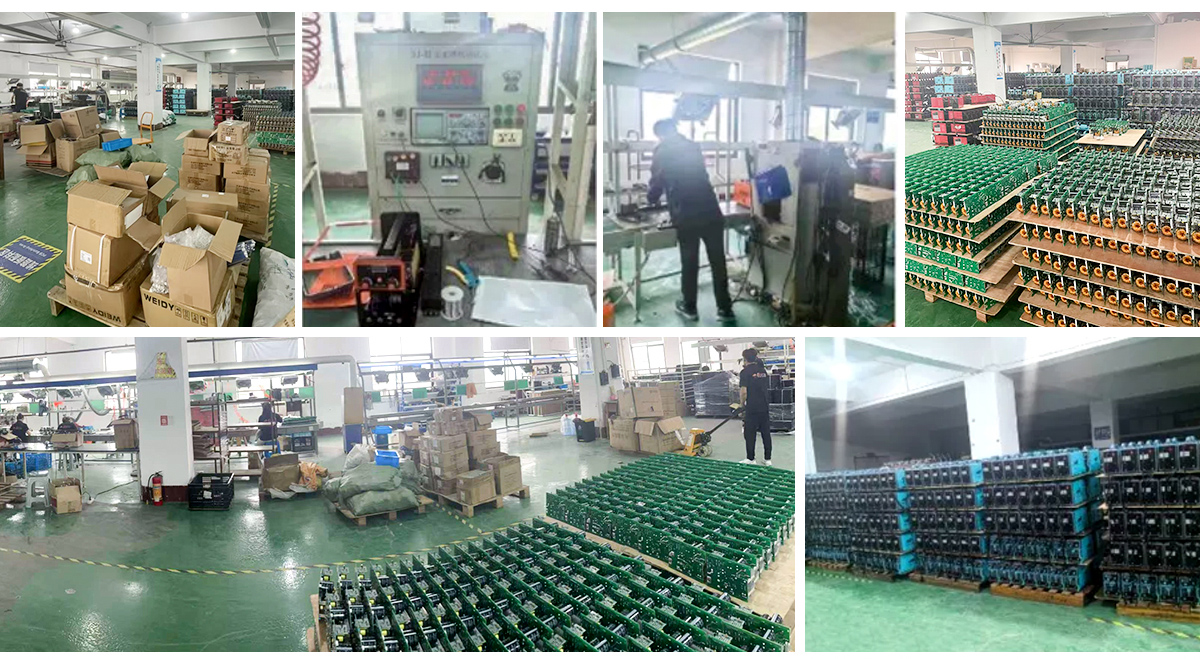

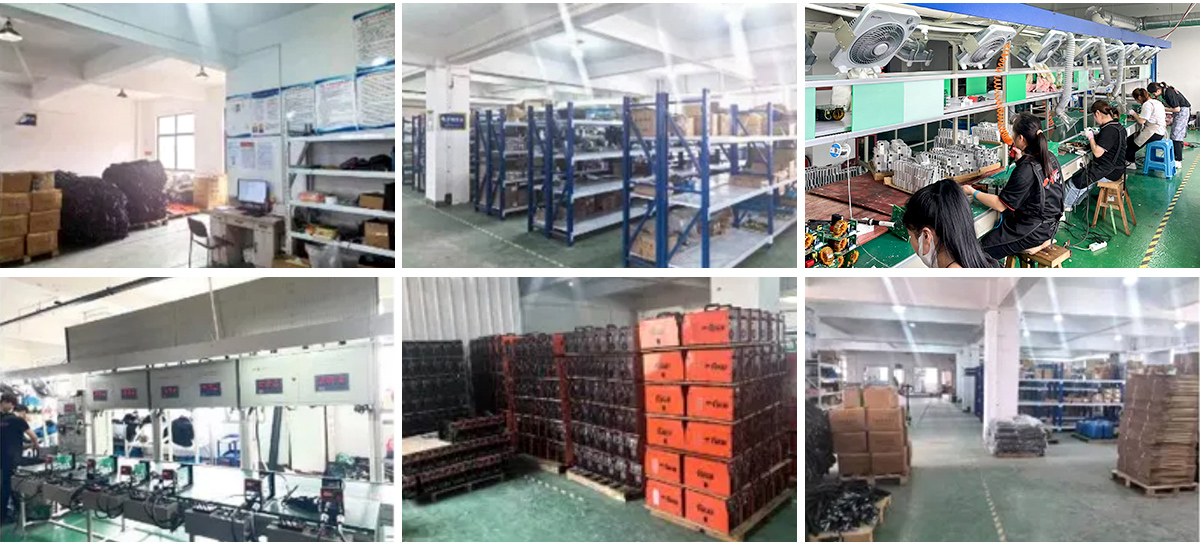

Our Factory
Our Team
Certificate
Why Choose Us？
We are China Leading manufacturer. We areconfident that with our experience in Circuitbreaker, Transformer, Relay, Substation, Stablizeretc. Quick delivery time, excellent quality andcomprehensive superior service we can giveour customers complete satisfaction.
100% QC inspection before shipping.
For large order, engineer can be sent to yourcountry for on-site mainternace instructions.
OEM is available.
